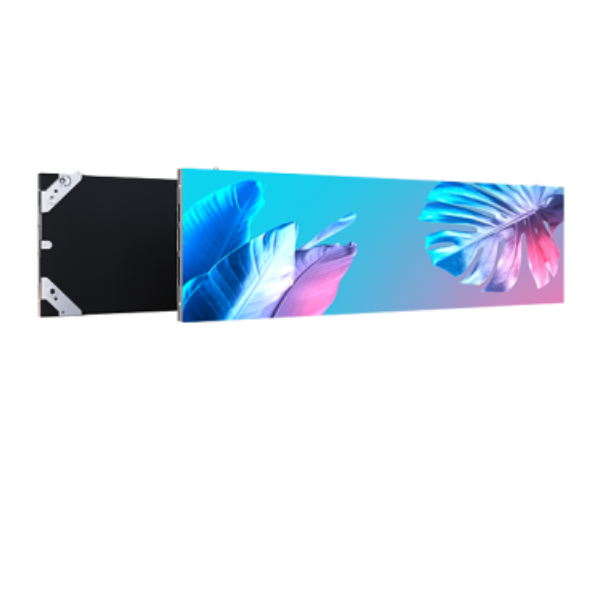

LED Display TP Series Specifications
Transparent display technology solutions
| Item Number | FAB-TP1.5 | FAB-TP1.9 | FAB-TP2.6 | FAB-TP3.9 |
|---|---|---|---|---|
| Pixel Pitch (mm) | 1.5 | 1.9 | 2.6 | 3.9 |
| Pixel Density (dots/SQM) | 409,600 | 262,144 | 147,456 | 65,536 |
| LED Type | SMD1010 | SMD1212 | SMD2121 | SMD2121 |
| Module Resolution (pixels) | 160×180 | 128×144 | 96×108 | 64×72 |
| Module Size (mm) | 250×281.25 | 250×281.25 | 250×281.25 | 250×281.25 |
| Cabinet Size (mm) | 500×281.25 | 1,000×281.25 | 1,000×281.25 | 1,000×281.25 |
| Cabinet Weight (KG) | 3.1 | 5.7 | 5.7 | 5.7 |
| Brightness (Nits) | 600 | 1,000 | 1,000 | 1,000 |
| Refresh Rate (Hz) | 3,840 | 3,840 | 3,840 | 3,840 |
| Grey Scale (Bit) | ≥14 | ≥14 | ≥14 | ≥14 |
| Max Power Consumption (W/SQM) | 500 | 400 | 410 | 420 |
| Ave Power Consumption (W/SQM) | 200 | 160 | 170 | 170 |
| Maintenance Type | Front | Front | Front | Front |
| Protection Level | IP20 | IP20 | IP20 | IP20 |
| Certificate | CE, FCC, ETL, EMC | CE, FCC, ETL, EMC | CE, FCC, ETL, EMC | CE, FCC, ETL, EMC |
FAB-TP1.5
Pixel Pitch (mm)
1.5
Pixel Density (dots/SQM)
409,600
LED Type
SMD1010
Module Resolution (pixels)
160×180
Module Size (mm)
250×281.25
Cabinet Size (mm)
500×281.25
Cabinet Weight (KG)
3.1
Brightness (Nits)
600
Refresh Rate (Hz)
3,840
Grey Scale (Bit)
≥14
Max Power Consumption (W/SQM)
500
Ave Power Consumption (W/SQM)
200
Maintenance Type
Front
Protection Level
IP20
Certificate
CE, FCC, ETL, EMC
FAB-TP1.9
Pixel Pitch (mm)
1.9
Pixel Density (dots/SQM)
262,144
LED Type
SMD1212
Module Resolution (pixels)
128×144
Module Size (mm)
250×281.25
Cabinet Size (mm)
1,000×281.25
Cabinet Weight (KG)
5.7
Brightness (Nits)
1,000
Refresh Rate (Hz)
3,840
Grey Scale (Bit)
≥14
Max Power Consumption (W/SQM)
400
Ave Power Consumption (W/SQM)
160
Maintenance Type
Front
Protection Level
IP20
Certificate
CE, FCC, ETL, EMC
FAB-TP2.6
Pixel Pitch (mm)
2.6
Pixel Density (dots/SQM)
147,456
LED Type
SMD2121
Module Resolution (pixels)
96×108
Module Size (mm)
250×281.25
Cabinet Size (mm)
1,000×281.25
Cabinet Weight (KG)
5.7
Brightness (Nits)
1,000
Refresh Rate (Hz)
3,840
Grey Scale (Bit)
≥14
Max Power Consumption (W/SQM)
410
Ave Power Consumption (W/SQM)
170
Maintenance Type
Front
Protection Level
IP20
Certificate
CE, FCC, ETL, EMC
FAB-TP3.9
Pixel Pitch (mm)
3.9
Pixel Density (dots/SQM)
65,536
LED Type
SMD2121
Module Resolution (pixels)
64×72
Module Size (mm)
250×281.25
Cabinet Size (mm)
1,000×281.25
Cabinet Weight (KG)
5.7
Brightness (Nits)
1,000
Refresh Rate (Hz)
3,840
Grey Scale (Bit)
≥14
Max Power Consumption (W/SQM)
420
Ave Power Consumption (W/SQM)
170
Maintenance Type
Front
Protection Level
IP20
Certificate
CE, FCC, ETL, EMC
