Ribbon Series

Ribbon Series

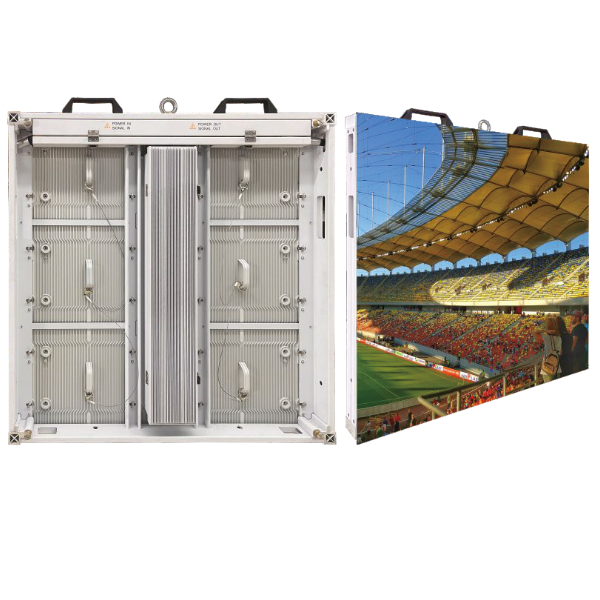

Customized design for stadium ribbon display.
750x750mm Aluminum cabinet size, light weight.
Handles on the top, easy to pull the cabinet up with safety wire.
Simple and strong back frame, attached onto the wall directly.
Totally front service and taken-out service.
Slop cover design, Prevent the audience from putting things on it.

LED Display RB Series Specifications

Rental and broadcasting solutions

Item Number	FAB-RB3.9	FAB-RB10.4
Pixel Pitch (mm)	3.91	10.4
Pixel Density (dots/SQM)	65,536	9,600
LED Type	SMD1921	SMD3535
Module Resolution (pixels)	96×64	72×24
Module Size (mm)	375×250	375×250
Cabinet Size (mm)	750×750	750×750
Cabinet Weight (KG)	17.5	18
Brightness (Nits)	5,000-6,000	6,000
Refresh Rate (Hz)	≥3,840	≥3,840
Grey Scale (Bit)	≥14	≥14
Max Power Consumption (W/SQM)	680	600
Ave Power Consumption (W/SQM)	200	180
Maintenance Type	Front/Rear	Front/Rear
Protection Level	IP65	IP65

FAB-RB3.9

Pixel Pitch (mm)

3.91

Pixel Density (dots/SQM)

65,536

LED Type

SMD1921

Module Resolution (pixels)

96×64

Module Size (mm)

375×250

Cabinet Size (mm)

750×750

Cabinet Weight (KG)

17.5

Brightness (Nits)

5,000-6,000

Refresh Rate (Hz)

≥3,840

Grey Scale (Bit)

≥14

Max Power Consumption (W/SQM)

680

Ave Power Consumption (W/SQM)

200

Maintenance Type

Front/Rear

Protection Level

IP65

FAB-RB10.4

Pixel Pitch (mm)

10.4

Pixel Density (dots/SQM)

9,600

LED Type

SMD3535
