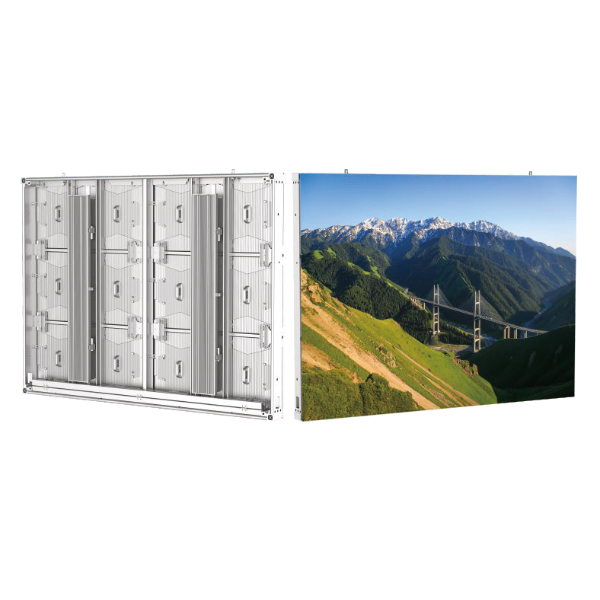

LED Display PT320 Series Specifications
Complete technical specifications comparison
| Item Number | FAB-PT320 6.67 | FAB-PT320 8 | FAB-PT320 10 |
|---|---|---|---|
| Pixel Pitch (mm) | 6.67 | 8 | 10 |
| Pixel Density (dots/SQM) | 22,500 | 15,625 | 10,000 |
| LED Type | SMD2727 | SMD3535 | SMD3535 |
| Module Resolution (pixels) | 48×48 | 40×40 | 32×32 |
| Module Size (mm) | 320×320 | 320×320 | 320×320 |
| Cabinet Size (mm) | 1280×960 | 1280×960 | 1280×960 |
| Cabinet Weight (KG) | 39 | 39 | 39 |
| Brightness (Nits) | 6,000-9,000 | 6,000-10,000 | 6,000-10,000 |
| Refresh Rate (Hz) | 3,840 | 3,840 | 3,840 |
| Grey Scale (Bit) | 14~16 | 14~16 | 14~16 |
| Max Power Consumption (W/SQM) | <600 | <600 | <600 |
| Ave Power Consumption (W/SQM) | <200 | <200 | <200 |
| Maintenance Type | Front/Rear | Front/Rear | Front/Rear |
| Protection Level | IP65/IP66 | IP65/IP66 | IP65/IP66 |
| Certificate | CE, FCC, ETL, EMC, CB, RoHS | CE, FCC, ETL, EMC, CB, RoHS | CE, FCC, ETL, EMC, CB, RoHS |
FAB-PT320 6.67
Pixel Pitch (mm)
6.67
Pixel Density (dots/SQM)
22,500
LED Type
SMD2727
Module Resolution (pixels)
48×48
Module Size (mm)
320×320
Cabinet Size (mm)
1280×960
Cabinet Weight (KG)
39
Brightness (Nits)
6,000-9,000
Refresh Rate (Hz)
3,840
Grey Scale (Bit)
14~16
Max Power Consumption (W/SQM)
<600
Ave Power Consumption (W/SQM)
<200
Maintenance Type
Front/Rear
Protection Level
IP65/IP66
Certificate
CE, FCC, ETL, EMC, CB, RoHS
FAB-PT320 8
Pixel Pitch (mm)
8
Pixel Density (dots/SQM)
15,625
LED Type
SMD3535
Module Resolution (pixels)
40×40
Module Size (mm)
320×320
Cabinet Size (mm)
1280×960
Cabinet Weight (KG)
39
Brightness (Nits)
6,000-10,000
Refresh Rate (Hz)
3,840
Grey Scale (Bit)
14~16
Max Power Consumption (W/SQM)
<600
Ave Power Consumption (W/SQM)
<200
Maintenance Type
Front/Rear
Protection Level
IP65/IP66
Certificate
CE, FCC, ETL, EMC, CB, RoHS
FAB-PT320 10
Pixel Pitch (mm)
10
Pixel Density (dots/SQM)
10,000
LED Type
SMD3535
Module Resolution (pixels)
32×32
Module Size (mm)
320×320
Cabinet Size (mm)
1280×960
Cabinet Weight (KG)
39
Brightness (Nits)
6,000-10,000
Refresh Rate (Hz)
3,840
Grey Scale (Bit)
14~16
Max Power Consumption (W/SQM)
<600
Ave Power Consumption (W/SQM)
<200
Maintenance Type
Front/Rear
Protection Level
IP65/IP66
Certificate
CE, FCC, ETL, EMC, CB, RoHS
