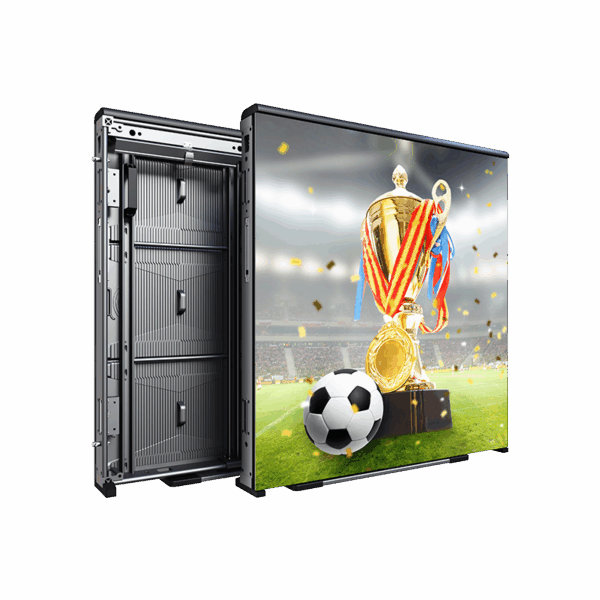

Platinum Sports Series 960
Outdoor Stadium Fixed LED Screen Display
Platinum Sports Series 960
Outdoor Stadium Fixed LED Screen Display
Features of Perimeter System
Platinum Sports 960 is our ultimate solution for stadiums and sports fields.It is designed with foot stand and top safer bumper.
Features of Perimeter System
Platinum Sports 960 is our ultimate solution for stadiums and sports fields.It is designed with foot stand and top safer bumper.
Excellent Cabinet Design
Full die-casting Aluminum module and cabinet frame not only accelerate heat dissipation;also own light weight 34.8KG/SQM;which will make the transportation and installation faster and easier.
Excellent Cabinet Design
Full die-casting Aluminum module and cabinet frame not only accelerate heat dissipation;also own light weight 34.8KG/SQM;which will make the transportation and installation faster and easier.
Cable Free Back Side
All cables are hidden at the Top of the cabinet,which makes the clean look and prevent disconnecting by accidents.
Cable Free Back Side
All cables are hidden at the Top of the cabinet,which makes the clean look and prevent disconnecting by accidents.
Protection grade IP66 and Fanless Cooling System
The total cabinet is IP66 front and rear,tested by TUV.It will avoid any water entry from the outside.And the fanless cooling system will isolate dust and dirt and extend the lifespan of the electronic components inside.
Protection grade IP66 and Fanless Cooling System
The total cabinet is IP66 front and rear,tested by TUV.It will avoid any water entry from the outside.And the fanless cooling system will isolate dust and dirt and extend the lifespan of the electronic components inside.
LED Display Platinum Sports Series Specifications
Professional sports and stadium display solutions
| Item Number | FAB-PH6.6 | FAB-PH8 | FAB-PH10 |
|---|---|---|---|
| Pixel Pitch | 6.67 | 8 | 10 |
| Pixel Density | 22,500 | 15,625 | 10,000 |
| LED Arrangement | SMD2727 | SMD3535 | SMD3535 |
| Module Resolution | 72×48 | 60×40 | 48×32 |
| Module Dimension | 480×320 | 480×320 | 480×320 |
| Module Weight | 2.3KG | 2.3KG | 2.3KG |
| Module Thickness | 23.5mm | 23.5mm | 23.5mm |
| Grey Scale (bit) | 14~16bit | 14~16bit | 14~16bit |
| Brightness Level | 6000~10000nits | 6000~10000nits | 6000~10000nits |
| Cabinet Size | 960×960 | 960×960 | 960×960 |
| Cabinet Weight(Kg) | 34.8kg/m² | 34.8kg/m² | 34.8kg/m² |
| Cabinet Thickness(mm) | 101mm | 101mm | 101mm |
| Max Power Consumption/m² | 550w/m² | 550w/m² | 550w/m² |
| Ave Power Consumption/m² | 200w/m² | 200w/m² | 200w/m² |
| Visual View Angle | 160°/60°/30° | 160°/60°/30° | 160°/60°/30° |
| Operating Power Source | AC110~220V/200~240V | AC110~220V/200~240V | AC110~220V/200~240V |
| Operating Temperature | -30~ +60 | -30~ +60 | -30~ +60 |
| Refresh Rate | 3840Hz | 3840Hz | 3840Hz |
| Protecting Rating | IP66 | IP66 | IP66 |
| Certificate | CE, FCC, ETL, EMC, CB, RoHS | CE, FCC, ETL, EMC, CB, RoHS | CE, FCC, ETL, EMC, CB, RoHS |
