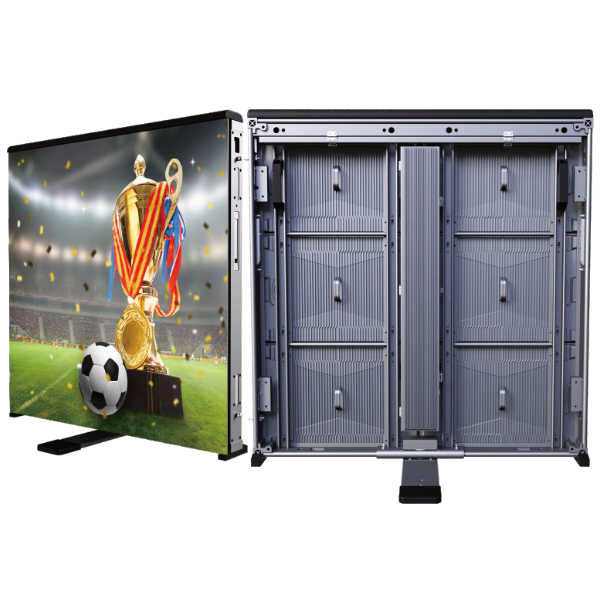

LED Display PSP Series Specifications
Professional outdoor display solutions
| Item Number | FAB-PSP6.67 | FAB-PSP8 | FAB-PSP10 |
|---|---|---|---|
| Pixel Pitch (mm) | 6.67 | 8 | 10 |
| Pixel Density (dots/SQM) | 22,500 | 15,625 | 10,000 |
| LED Type | SMD2727 | SMD3535 | SMD3535 |
| Module Resolution (pixels) | 72×48 | 60×40 | 48×32 |
| Module Size (mm) | 480×320 | 480×320 | 480×320 |
| Cabinet Size (mm) | 960×960 | 960×960 | 960×960 |
| Cabinet Weight (KG) | 31 | 31 | 31 |
| Brightness (Nits) | 6,000-10,000 | 6,000-10,000 | 6,000-10,000 |
| Refresh Rate (Hz) | 3,840 | 3,840 | 3,840 |
| Grey Scale (Bit) | 14~16 | 14~16 | 14~16 |
| Max Power Consumption (W/SQM) | 550 | 550 | 550 |
| Ave Power Consumption (W/SQM) | 200 | 200 | 200 |
| Maintenance Type | Front/Rear | Front/Rear | Front/Rear |
| Protection Level | IP65 | IP65 | IP65 |
| Certificate | CE, FCC, ETL, EMC, CB, RoHS | CE, FCC, ETL, EMC, CB, RoHS | CE, FCC, ETL, EMC, CB, RoHS |
FAB-PSP6.67
Pixel Pitch (mm)
6.67
Pixel Density (dots/SQM)
22,500
LED Type
SMD2727
Module Resolution (pixels)
72×48
Module Size (mm)
480×320
Cabinet Size (mm)
960×960
Cabinet Weight (KG)
31
Brightness (Nits)
6,000-10,000
Refresh Rate (Hz)
3,840
Grey Scale (Bit)
14~16
Max Power Consumption (W/SQM)
550
Ave Power Consumption (W/SQM)
200
Maintenance Type
Front/Rear
Protection Level
IP65
Certificate
CE, FCC, ETL, EMC, CB, RoHS
FAB-PSP8
Pixel Pitch (mm)
8
Pixel Density (dots/SQM)
15,625
LED Type
SMD3535
Module Resolution (pixels)
60×40
Module Size (mm)
480×320
Cabinet Size (mm)
960×960
Cabinet Weight (KG)
31
Brightness (Nits)
6,000-10,000
Refresh Rate (Hz)
3,840
Grey Scale (Bit)
14~16
Max Power Consumption (W/SQM)
550
Ave Power Consumption (W/SQM)
200
Maintenance Type
Front/Rear
Protection Level
IP65
Certificate
CE, FCC, ETL, EMC, CB, RoHS
FAB-PSP10
Pixel Pitch (mm)
10
Pixel Density (dots/SQM)
10,000
LED Type
SMD3535
Module Resolution (pixels)
48×32
Module Size (mm)
480×320
Cabinet Size (mm)
960×960
Cabinet Weight (KG)
31
Brightness (Nits)
6,000-10,000
Refresh Rate (Hz)
3,840
Grey Scale (Bit)
14~16
Max Power Consumption (W/SQM)
550
Ave Power Consumption (W/SQM)
200
Maintenance Type
Front/Rear
Protection Level
IP65
Certificate
CE, FCC, ETL, EMC, CB, RoHS
