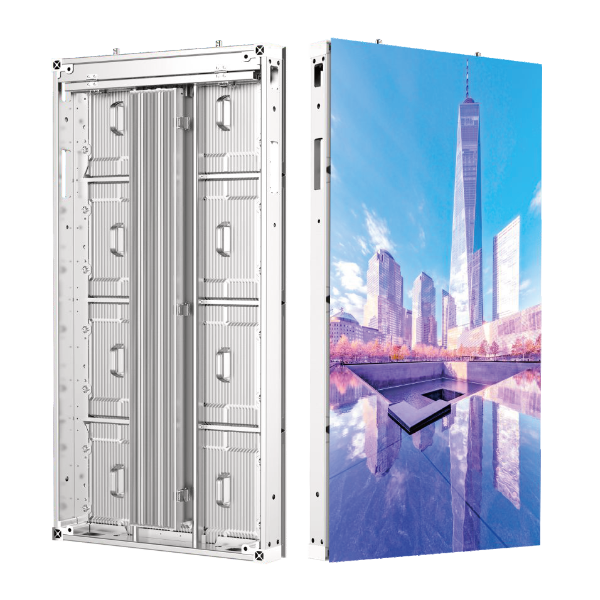

LED Display PTS Series Specifications
Complete technical specifications comparison
| Item Number | FAB-PTS2.6 | FAB-PTS3.9 | FAB-PTS4.8 |
|---|---|---|---|
| Pixel Pitch (mm) | 2.6 | 3.9 | 4.8 |
| Pixel Density (dots/SQM) | 112,896 | 65,536 | 43,264 |
| LED Type | SMD1515 | SMD1921 | SMD1921 |
| Module Resolution (pixels) | 64×64 | 128×64 | 104×52 |
| Module Size (mm) | 250×250 | 500×250 | 500×250 |
| Cabinet Size (mm) | 500×500 | 500×1,000 | 500×1,000 |
| Cabinet Weight (KG) | 9.5 | 17 | 17 |
| Brightness (Nits) | 3,500-4,500 | 4,800-7,500 | 4,800-7,500 |
| Refresh Rate (Hz) | ≥3,840 | ≥3,840 | ≥3,840 |
| Grey Scale (Bit) | ≥14 | ≥14 | ≥14 |
| Max Power Consumption (W/SQM) | 700 | 650 | 650 |
| Ave Power Consumption (W/SQM) | 210 | 195 | 195 |
| Maintenance Type | Front/Rear | Front/Rear | Front/Rear |
| Protection Level | IP65 | IP65 | IP65 |
| Certificate | CE, FCC, ETL, EMC, CB | CE, FCC, ETL, EMC, CB | CE, FCC, ETL, EMC, CB |
FAB-PTS2.6
Pixel Pitch (mm)
2.6
Pixel Density (dots/SQM)
112,896
LED Type
SMD1515
Module Resolution (pixels)
64×64
Module Size (mm)
250×250
Cabinet Size (mm)
500×500
Cabinet Weight (KG)
9.5
Brightness (Nits)
3,500-4,500
Refresh Rate (Hz)
≥3,840
Grey Scale (Bit)
≥14
Max Power Consumption (W/SQM)
700
Ave Power Consumption (W/SQM)
210
Maintenance Type
Front/Rear
Protection Level
IP65
Certificate
CE, FCC, ETL, EMC, CB
FAB-PTS3.9
Pixel Pitch (mm)
3.9
Pixel Density (dots/SQM)
65,536
LED Type
SMD1921
Module Resolution (pixels)
128×64
Module Size (mm)
500×250
Cabinet Size (mm)
500×1,000
Cabinet Weight (KG)
17
Brightness (Nits)
4,800-7,500
Refresh Rate (Hz)
≥3,840
Grey Scale (Bit)
≥14
Max Power Consumption (W/SQM)
650
Ave Power Consumption (W/SQM)
195
Maintenance Type
Front/Rear
Protection Level
IP65
Certificate
CE, FCC, ETL, EMC, CB
FAB-PTS4.8
Pixel Pitch (mm)
4.8
Pixel Density (dots/SQM)
43,264
LED Type
SMD1921
Module Resolution (pixels)
104×52
Module Size (mm)
500×250
Cabinet Size (mm)
500×1,000
Cabinet Weight (KG)
17
Brightness (Nits)
4,800-7,500
Refresh Rate (Hz)
≥3,840
Grey Scale (Bit)
≥14
Max Power Consumption (W/SQM)
650
Ave Power Consumption (W/SQM)
195
Maintenance Type
Front/Rear
Protection Level
IP65
Certificate
CE, FCC, ETL, EMC, CB
