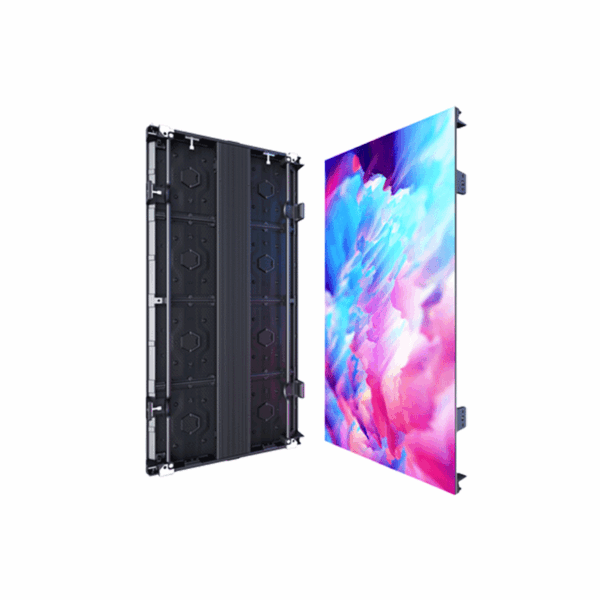

Inpad Max Series
Pixel Pitch lndoor :
Flexibility
Flexible panel sizes with various installation methods :
- Wall mounted
- TRuss rigging
- Frame installation
- Ground stacking installation
High Brightness for window led display
Applying high-end black SMD LED,reaching up to more than 3000rnits brightness;
The ideal product for show window screen Commercial contents can be passed on to target customer clearly even exposed to sunlight
Front And Rear Service
The first front service and rear service indoor LED screen in this industry with magnetic modules.
LED Display IPM Series Specifications
Indoor premium display solutions
| Item Number | FAB-IPM1.95 | FAB-IPM2.6 | FAB-IPM2.9 | FAB-IPM3.9 | FAB-IPM4.8 |
|---|---|---|---|---|---|
| Pixel Pitch (mm) | 1.95 | 2.6 | 2.9 | 3.9 | 4.8 |
| Pixel Density (dots/SQM) | 262,144 | 147,456 | 112,896 | 65,536 | 43,264 |
| LED Type | SMD1212 | SMD2121 | SMD2121 | SMD2121 | SMD2121 |
| Module Resolution (pixels) | 128×128 | 96×96 | 84×84 | 64×64 | 52×52 |
| Module Size (mm) | 250×250 | 250×250 | 250×250 | 250×250 | 250×250 |
| Cabinet Size (mm) | 500×500 | 500×1,000 | 500×1,000 | 500×1,000 | 500×1,000 |
| Cabinet Weight (KG) | 5.85 | 10.25 | 10.25 | 10.25 | 10.25 |
| Brightness (Nits) | 800 | 1,000 | 1,000 | 1,000 | 1,000 |
| Refresh Rate (Hz) | 3,840 | 3,840 | 3,840 | 3,840 | 3,840 |
| Grey Scale (Bit) | ≥14 | ≥14 | ≥14 | ≥14 | ≥14 |
| Max Power Consumption (W/SQM) | 560 | 440 | 440 | 450 | 450 |
| Ave Power Consumption (W/SQM) | 200 | 150 | 150 | 160 | 160 |
| Maintenance Type | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| Protection Level | IP20 | IP20 | IP20 | IP20 | IP20 |
| Certificate | CE, ETL, EMC, 3C | CE, ETL, EMC, 3C | CE, ETL, EMC, 3C | CE, ETL, EMC, 3C | CE, ETL, EMC, 3C |
FAB-IPM1.95
Pixel Pitch (mm)
1.95
Pixel Density (dots/SQM)
262,144
LED Type
SMD1212
Module Resolution (pixels)
128×128
Module Size (mm)
250×250
Cabinet Size (mm)
500×500
Cabinet Weight (KG)
5.85
Brightness (Nits)
800
Refresh Rate (Hz)
3,840
Grey Scale (Bit)
≥14
Max Power Consumption (W/SQM)
560
Ave Power Consumption (W/SQM)
200
Maintenance Type
Front/Rear
Protection Level
IP20
Certificate
CE, ETL, EMC, 3C
FAB-IPM2.6
Pixel Pitch (mm)
2.6
Pixel Density (dots/SQM)
147,456
LED Type
SMD2121
Module Resolution (pixels)
96×96
Module Size (mm)
250×250
Cabinet Size (mm)
500×1,000
Cabinet Weight (KG)
10.25
Brightness (Nits)
1,000
Refresh Rate (Hz)
3,840
Grey Scale (Bit)
≥14
Max Power Consumption (W/SQM)
440
Ave Power Consumption (W/SQM)
150
Maintenance Type
Front/Rear
Protection Level
IP20
Certificate
CE, ETL, EMC, 3C
FAB-IPM2.9
Pixel Pitch (mm)
2.9
Pixel Density (dots/SQM)
112,896
LED Type
SMD2121
Module Resolution (pixels)
84×84
Module Size (mm)
250×250
Cabinet Size (mm)
500×1,000
Cabinet Weight (KG)
10.25
Brightness (Nits)
1,000
Refresh Rate (Hz)
3,840
Grey Scale (Bit)
≥14
Max Power Consumption (W/SQM)
440
Ave Power Consumption (W/SQM)
150
Maintenance Type
Front/Rear
Protection Level
IP20
Certificate
CE, ETL, EMC, 3C
FAB-IPM3.9
Pixel Pitch (mm)
3.9
Pixel Density (dots/SQM)
65,536
LED Type
SMD2121
Module Resolution (pixels)
64×64
Module Size (mm)
250×250
Cabinet Size (mm)
500×1,000
Cabinet Weight (KG)
10.25
Brightness (Nits)
1,000
Refresh Rate (Hz)
3,840
Grey Scale (Bit)
≥14
Max Power Consumption (W/SQM)
450
Ave Power Consumption (W/SQM)
160
Maintenance Type
Front/Rear
Protection Level
IP20
Certificate
CE, ETL, EMC, 3C
FAB-IPM4.8
Pixel Pitch (mm)
4.8
Pixel Density (dots/SQM)
43,264
LED Type
SMD2121
Module Resolution (pixels)
52×52
Module Size (mm)
250×250
Cabinet Size (mm)
500×1,000
Cabinet Weight (KG)
10.25
Brightness (Nits)
1,000
Refresh Rate (Hz)
3,840
Grey Scale (Bit)
≥14
Max Power Consumption (W/SQM)
450
Ave Power Consumption (W/SQM)
160
Maintenance Type
Front/Rear
Protection Level
IP20
Certificate
CE, ETL, EMC, 3C
